Horizontal Fluidized Bed Jet Mill

  • Single /Multiple Classifying Wheel
    for Silica Powder (Ultrafine Quartz Powder)

    Horizontal installation of high-precision grading rotor, linear speed up to 80m/s, to ensure the accuracy of vertex cutting.

    Fine powder with good repeatability, stable and reliable; constant temperature or low temperature without medium crushing; It has the advantages of high energy utilization rate, wear resistance of equipment, closed crushing, clean and environmental protection, and program control system, which is convenient for adjustment and operation.

    Widely used in chemical, minerals, metallurgy, abrasives, ceramics, refractory materials, medicine, pesticides, food, health products, high-tech materials and other industries.

Get A Quote

    Please prove you are human by selecting the heart

    Contact Us


    It is suitable for dry grinding, constant temperature or low temperature non medium grinding of all kinds of materials with Mohs hardness below 9. It can be used in series with multi-stage classifier to produce products with multiple particle sizes at one time.

    High precision grading rotor

    The world’s leading high-precision grading rotor, linear speed up to 80m / s, to ensure that the vertex cutting accuracy, can meet the demanding product requirements.

    Automation control system

    The control system adopts program control, which is easy to operate; the motor can be connected by belt, which can improve the speed and break through the problem of no high-speed motor.

    Large scale and large capacity

    The grading wheel can automatically separate materials through air flow, without coarse particles; the precise weighing control system can be selected, with high product stability and good consistency.

    Working Principle and Equipment type features

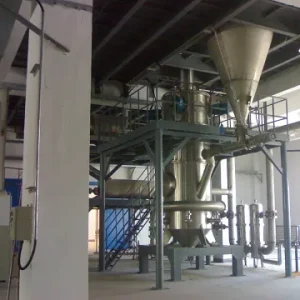

    Jet Mill, cyclone, bag filter and fan constitute a complete milling system. After the compressed air is filtered and dried, it is sprayed into the milling cavity at high speed through Laval nozzles. At the intersection of multiple high-pressure airflows, the materials are repeatedly collided, rubbed, and sheared to be milled. The milled materials rise with the suction of the fan. The air flow moves to the classification area, the coarse and fine powder are separated under strong centrifugal force generated by the high-speed rotating classification turbine. The fine particles that meet the particle size requirements are through classifier wheel and collected by cyclone and bag filter; the coarse powder drop to the milling area and continue to be milled.

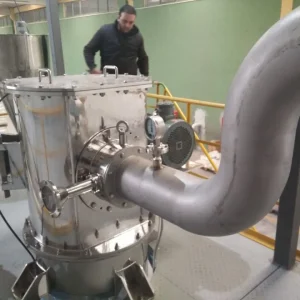

    MQW jet mill

    Single Classifying Wheel

    · Particle size range D50:2-45μm;
    · Good particle shape and narrow particle size distribution;
    · The rotor speed can be adjusted by frequency conversion, particle size distribution can be adjusted flexibly;
    · Vertical single-rotor structure can realize large production capacity, high efficiency and low investment;
    · Secondary air inlet design, high energy utilization rate, facilitate material flow and improve powder selection efficiency;
    · The entire line is sealed, with less dust, low noise, production process is clean and environmentally friendly;
    · The control system adopts PLC program control, which is easy to operate.

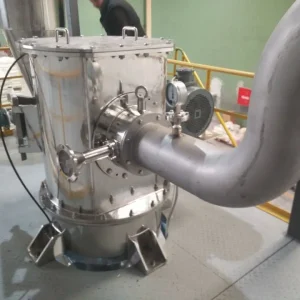

    MQW jet mill

    Multiple Classifying Wheel

    · The particle size range of D50:1-25μm;
    · Multi stage rotors installed horizontally can achieve higher output than single rotor;
    · Each grading rotor is equipped with a speed sensor, and the rotor speed can be adjusted by frequency conversion to flexibly adjust the particle size distribution;
    · It is easy to realize large-scale and large capacity. Take talc as an example, D50:≤3μm, and the capacity can reach 57t/h;
    · The whole system is closed comminution, less dust, low noise, clean and environment-friendly production process;
    · The control system adopts program control, which is easy to operate.

    Horizontal Fluidized Bed Jet Mill Technical Parameters

    Parameter / Model MQW03 MQW06 MQW10 MQW20 MQW30 MQW40 MQW60 MQW80 MQW120 MQW160 MQW240
    Feeding Size (mm) <1 <2 <2 <3 <3 <3 <3 <3 <3 <3 <3
    Production Capacity (kg/h) 0.3-10 10-150 20-300 40-600 100-900 200-1200 500-2000 800-3000 1500-6000 2000-8000 4000-12000
    Particle Size (D97:μm) 3-45 3-45 3-45 3-45 3-45 3-45 3-45 3-45 3-45 3-45 3-45
    Classifier Motor (kW) 2.2 3 5.5/7.5 7.5/11 11/15 15/7.5*3 7.5*3 11*3 15*3 15*4 15*6
    Air Consumption (m³/min) 3 6 10 20 30 40 60 80 120 160 240
    Air Pressure (Mpa) 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1

    Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
